Robot Welding Cell

Welding robot cell

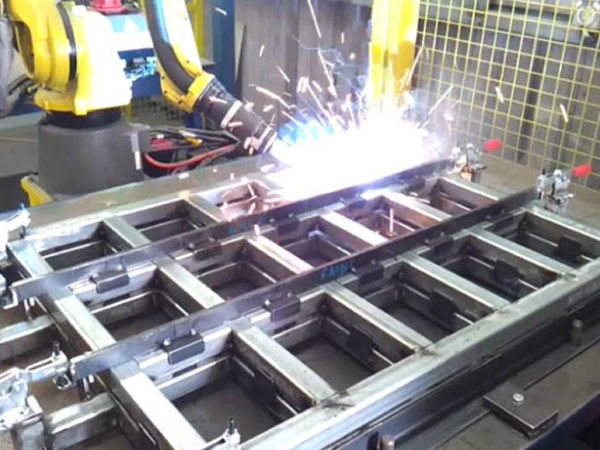

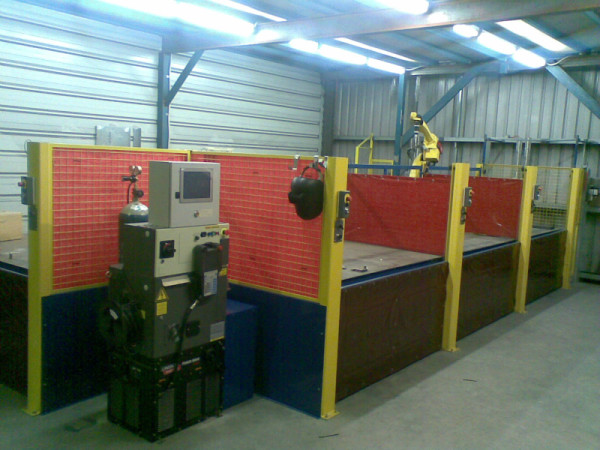

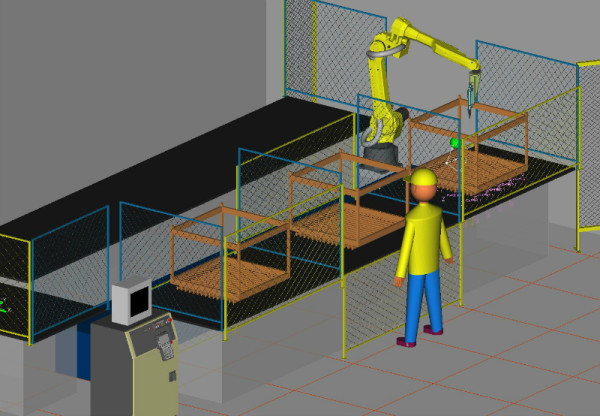

All Duct Fabrications on the Mornington Peninsula realised that automating their fabrication process was necessary in order to compete in a global market and keep their business on shore. A Fanuc Arc Mate 120i robot with integrated rail axis was chosen to reach their required production targets through a robotic welding cell.

All Duct performed all mechanical work including fabrication and installation of the 6 metre rail.
Ethernet I/P was utilised for the fieldbus, and a Pro Face HMI provides the operator with an intuitive level of monitoring and control.

If you are interested in an automated welding process utilising a welding robot, contact us today!

Fanuc ARC Mate Robots

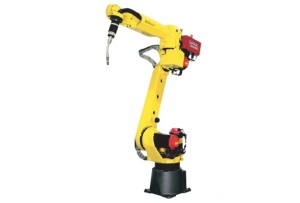

Fanuc ARC Mate 100iC features an integrated arc welding torch cable providing the highest motion performance in it’s class. Four models are available with varying reach and payload capacities.

This robot features;
◦Highly rigid arm and advanced servo technology resulting in an increased maximum speed and acceleration performance, enabling the robot to decrease cycle time by more than 15% (compared with previous models), making it the fastest robot of it’s kind in the world.
◦The slimmest robot arm, with integrated torch cable in the world, enabling welding operations in narrow spaces and high density installations.
◦Intelligent functions available as an option, including iRVision, Collision Detection, and Coordinated Motion.

Specifications

Payload 6 – 20 kg
Axes 6
Reach 1420 – 2010mm
